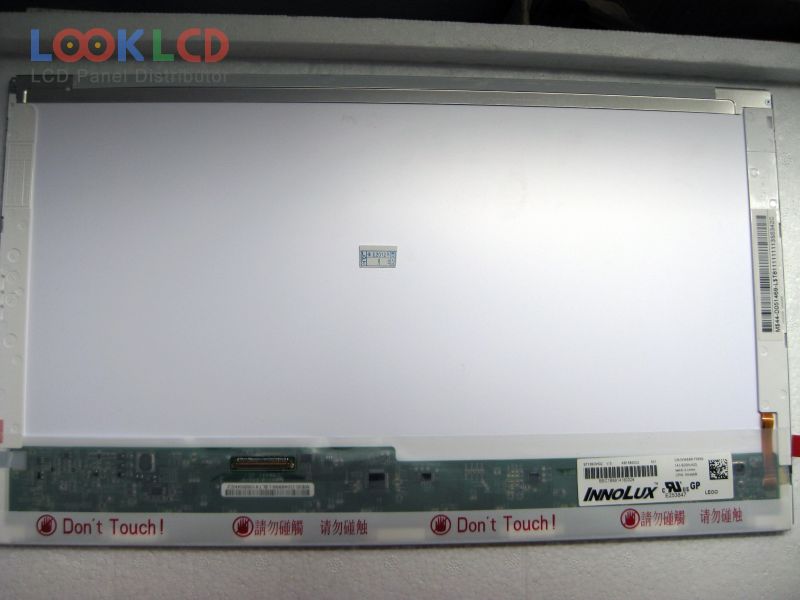

| Dalies numeris | BT156GW02 V.0 |
| Prekės ženklas | Innolux |
| Dydis | 15.6 |
| Taikymas | NBPC |
| Rezoliucija | 1366×768 |
| Sudėtis | LCM |
| Ryškumas | 220 |
| CR | 500:1 |
| Spalvos | 262K |
| Foninis apšvietimas | WLED |
| Sąsaja | LVDS |
| skydelio prekės ženklas | INNOLUX |
| skydo modelis | BT156GW02 V.0 16 Compatible model |
| skydo tipas | a-Si TFT-LCD , LCM |
| skydelio dydis | 15.6 inch |
| rezoliucija | 1366(RGB)×768 , WXGA |
| rodymo rėžimas | TN, Normally White, Transmissive |
| aktyvioje srityje | 344.232×193.536 mm |
| kontūras | 359.3×209.5×5.5 mm |
| formos stilius | Wedge (PCBA Bent, Depth ≥5.2mm) |
| paviršius | Antiglare, Hard coating (3H) |
| ryškumas | 220 cd/m² (Typ.) |
| Kontrasto santykis | 500:1 (Typ.) |
| ekrano spalvos | 262K (6-bit), CIE193160% |
| atsakymo laikas | 8 (Typ.)(Tr+Td) |
| žiūrėjimo kampas | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| dažnis | 60Hz |
| lempos tipas | WLEDEmbedded (LED Driver) |
| signalo sąsaja | LVDS (1 ch, 6-bit), 40 pins |
| įėjimo įtampa | 3.3V (Typ.) |
| taikymas | NBPC |
