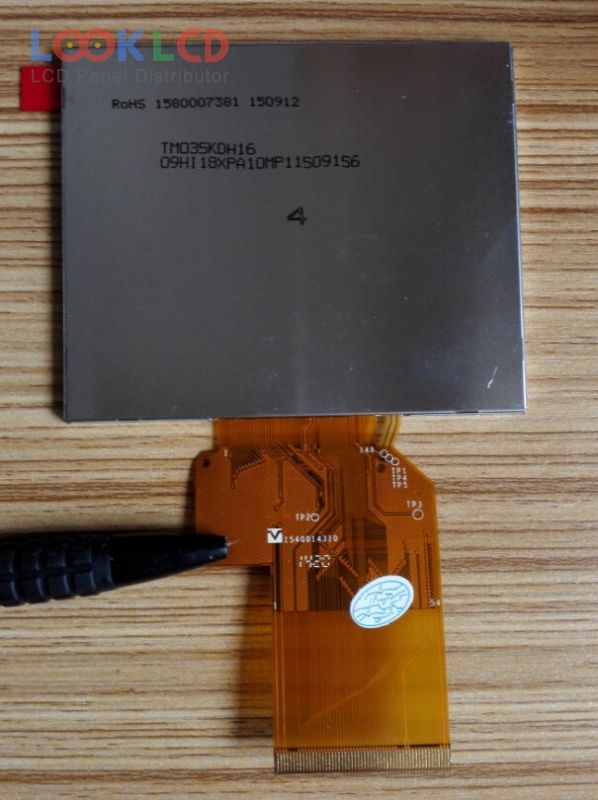

| Dalies numeris | TM035KDH16-09 |
| Prekės ženklas | Tianma |
| Dydis | 3.5 |
| Taikymas | DSC |
| Rezoliucija | 320×240 |
| Sudėtis | LCM |
| Ryškumas | 330 |
| CR | 500:1 |
| Spalvos | 16.7M |
| Foninis apšvietimas | WLED |
| Sąsaja | Parallel/Serial |
| skydelio prekės ženklas | TIANMA |
| skydo modelis | TM035KDH16-09 |
| skydo tipas | a-Si TFT-LCD , LCM |
| skydelio dydis | 3.5 inch |
| rezoliucija | 320(RGB)×240 , QVGA |
| rodymo rėžimas | TN, Normally White, Transmissive |
| aktyvioje srityje | 70.08×52.56 mm |
| kontūras | 76.9×63.9×3.35 mm |
| paviršius | Antiglare |
| ryškumas | 330 cd/m² (Typ.) |
| Kontrasto santykis | 500:1 (Typ.) |
| ekrano spalvos | 16.7M (8-bit), CIE193150% |
| atsakymo laikas | 20 (Typ.)(Tr+Td) |
| žiūrėjimo kampas | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| dažnis | 60Hz |
| lempos tipas | 6S1PWLEDWithout Driver |
| signalo sąsaja | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| įėjimo įtampa | 3.3V (Typ.) |
| taikymas | DSC |
